Short Range|22m Infrared SPAD Laser Ranging Module TOF Pulse Laser Ranging Module
Fully integrated single-channel dToF in small size
High-sensitivity infrared-enhanced SPAD sensor
High resistance to ambient light, reflectance correction function
I2C/SPI/UART is supported
22 meters, available indoors and outdoors
High precision: pulsed, centimeter-level accuracy
>>> reasons for customer selection:

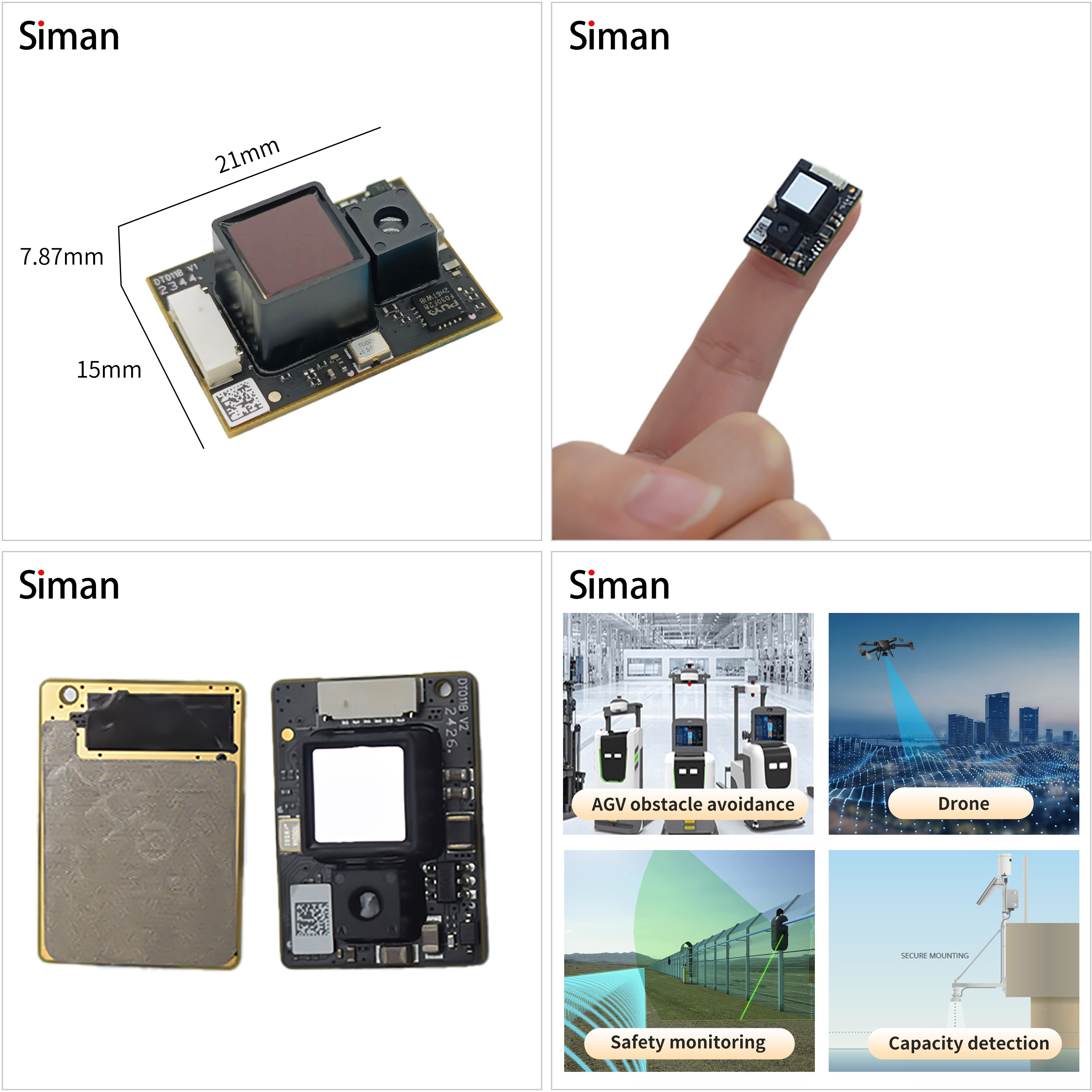

This long-distance laser ranging module not only has an ultra-small size (21*15*7.87mm), but also is lightweight, easy to integrate and use. Customers are often used in the construction industry, coal mining industry, sweeping robot industry, measuring container deformation, interior decoration room height and width measurement, etc.
Siman Sensor Technology Co., Ltd. is a domestic manufacturer specializing in the development and generation of laser ranging sensors and laser ranging modules, with a strong R&D team. Committed to the research and development of the laser field, the developed laser ranging sensor integrates optical, electronic, mechanical and other technologies, and can quickly and accurately obtain the distance value.
SDAM is a fully integrated single-channel dToF ranging small module, integrating a self-developed high-sensitivity infrared-enhanced SPAD sensor with a range of 20m. The on-chip integration of time-dependent photon threshold algorithm, histogram statistical algorithm, and fast TDC architecture achieves high-precision ranging, 12m@100KLux anti-ambient light capability, and reflectance correction function. The SDAM integrated power module operates from a single 3.3V supply with built-in temperature compensation. Supporting I2C, UART interfaces, easy integration and use, and a compact and reliable optical LGA package with a small size and light weight, it is an excellent choice for micro-small dToF applications.
Advantages and features:
> Highly integrated dToF ranging small module solution

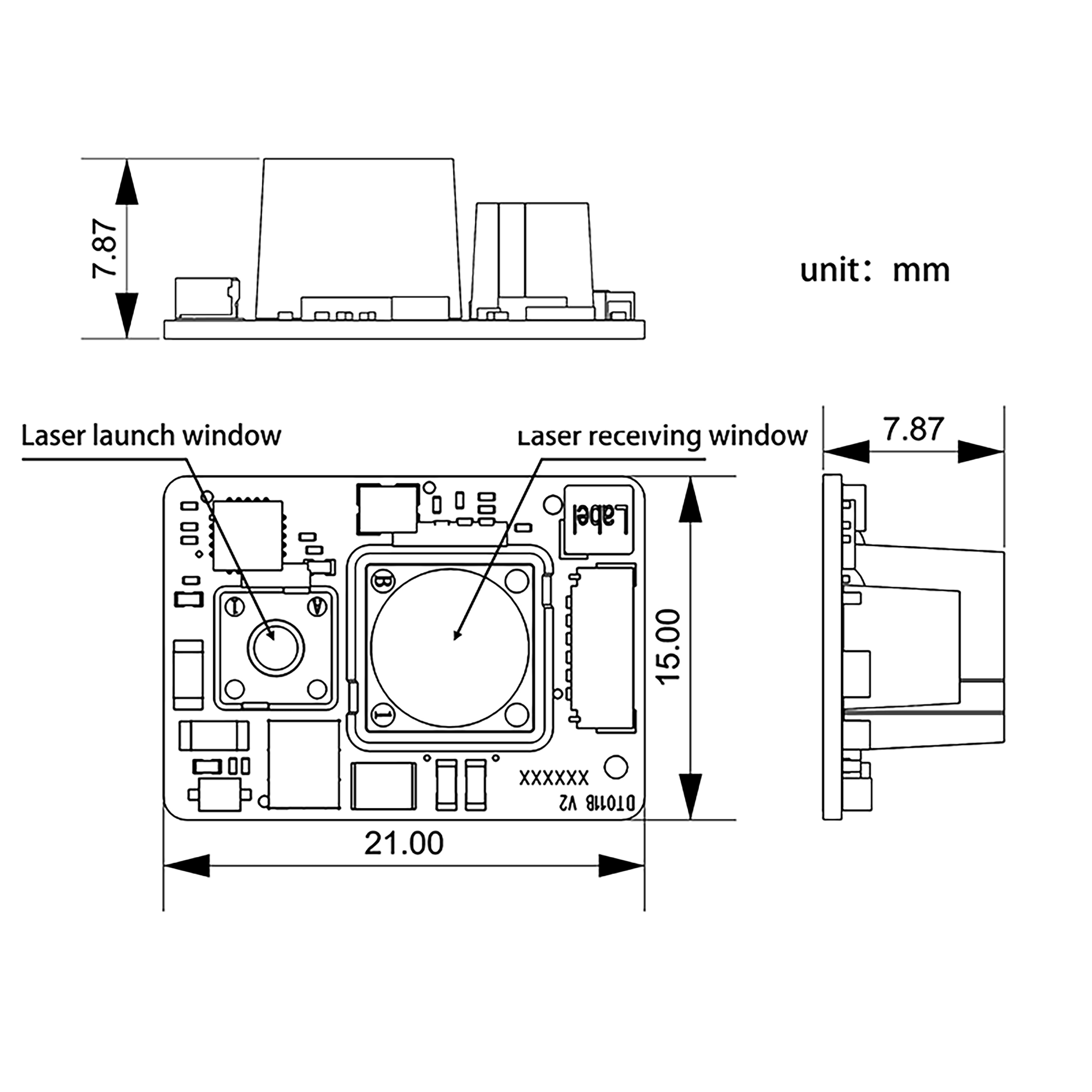

> Ultra-small construction size, only 21×15×7.87 mm
> Ultra-light weight of only 1.35 grams
> ±6cm@0.2m~6m; ±1%@>6m (corresponding to target reflectivity 18%~88%), with a maximum range of 20m
> Integrated histogram statistical algorithm, output doublet position, easy to calibrate
> Integrate time-dependent photon threshold anti-ambient light algorithm, with 12m@100KLux anti-ambient light capability
> TDC time window can be configured to meet the needs of different application scenarios
> The data is output stably according to the configured period, 250fps
> Reflectance correction function
Applications:
It is used in various industrial applications, such as sweepers, AGV obstacle avoidance, UAV height fixing and obstacle avoidance, security monitoring, capacity detection, proximity detection, presence or not.

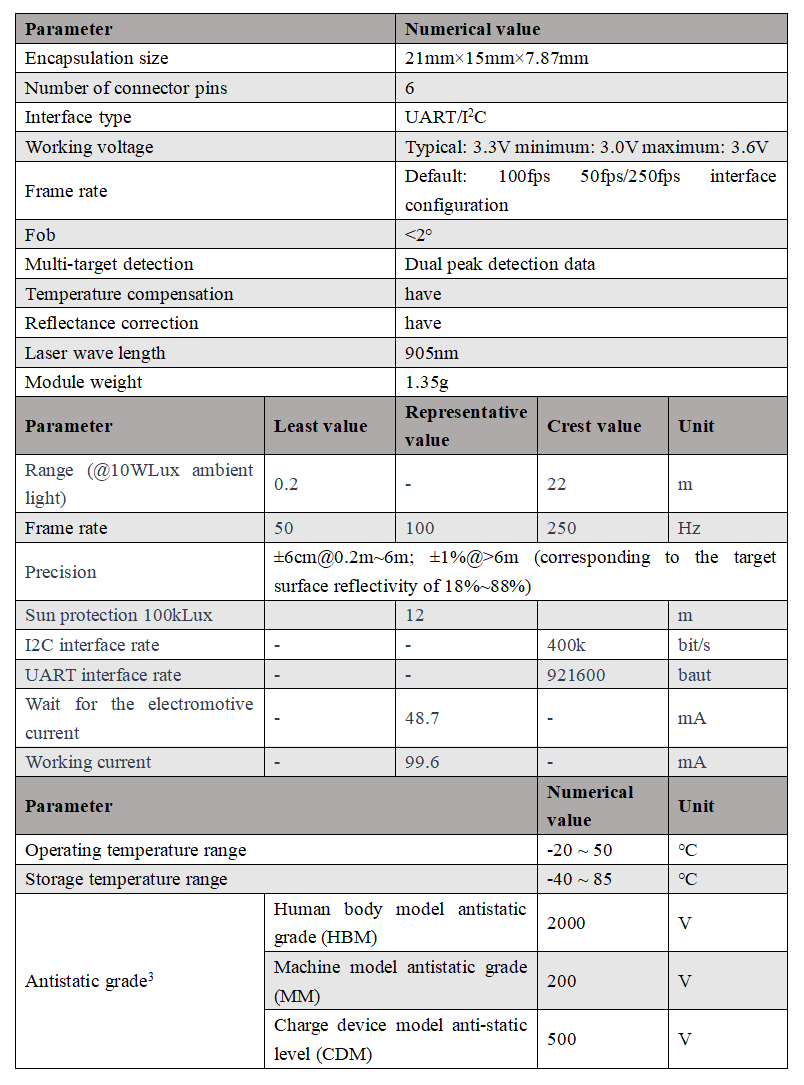

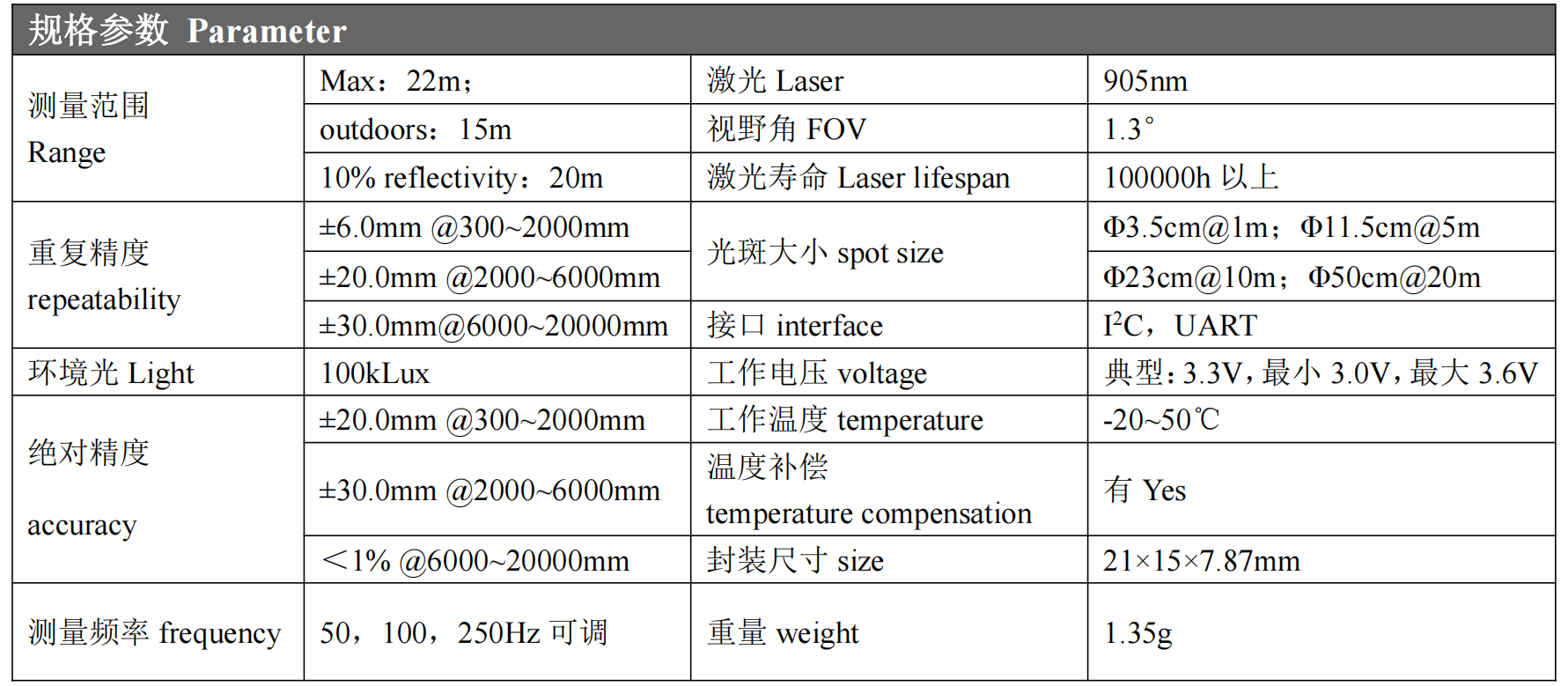

Technical Parameters:
